Industries/Hospitals |
 |
|
Commercial buildings |
|
Residential buildings |
|
Hotels/Bank |
|
Telecom Sector |
|
Shopping Mall |
|
Government Offices |
Tata Engine Advantages
|
Compact size |
 |
|
Low noise level |
|
Easy maintenance |
|
Better Fuel Efficiency |
|
Better power to weight ratio |
|
Easy availability of spare parts |
|
Longer interval between overhauls |
|
Rugged design & constructed parts |
|
Less wear and tear of parts gives longer life to parts |
Alternator Specifications
| Phase |
Three Phase (Brush Less) |
| Voltage |
415V |
| Speed/Frequency |
1500RPM/50Hz |
| Power Factor |
0.8(Lag) |
| Enclosure |
IP23 |
| Voltage Regulation (max) |
±1%@ Static Conditions |
| Class of insulation |
Class H |
| Wiring |
4 Wire confirming BS5000/S4722 |
| Permissible Overload |
10% in 1/12 hours |
Advantage of Tata Design canopy
| The design of gensets powered by Tata engine has got the following advantages: |
|
Sturdy body |
|
Low Maintenance cost |
|
Flush styling-Non Projections |
|
Silent, Compact and Light weight |
|
Environment Friendly (CPCB compliance) |
|
Acoustic enclosures with fire retardant foam |
|
Designed for ease of maintenance & interchangeability |
|
Various canopy version are available as per requirement |
|
capable of achieving 75 DBA sound levels at a distance of 1M |
Control Panel
|
Control Panel (14/16 gauge CRCA sheet, powder coated) should contain the following |
|
Voltage, Current, Frequency, Lube oil press, Water temp., RPM, Frequency] Fuel level & HMR |
|
MCB of suitable Rating for overload & short circuit protection. |
|
Emergency stop: Annunciated whenever an emergency stop signal is received by the control |
|
Safety trip/Alarm |
|
Instrument fuses duly wired & Ferruled |

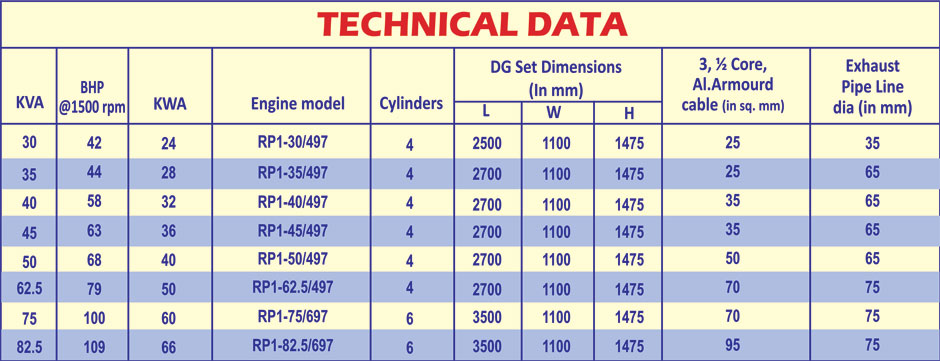

Technical Data
 |
Product innovation is continuous process,hence data givan is subject to change without any notice, approximate fuel consumption at 75% load, Stand by Rating at 80% load
Water cooled, Turbocharged, Mechanical Governor, Electric start DG Set. |
